Description
6-Lobe recess manufactured with internal pin.
Popular security drive for high torque applications. Quickly and easily installed and removed using matching tooling.
- Full range of AB Self Tapping and Metric Machine Screws stocked in A2 Stainless Steel
- Box quantity: 100

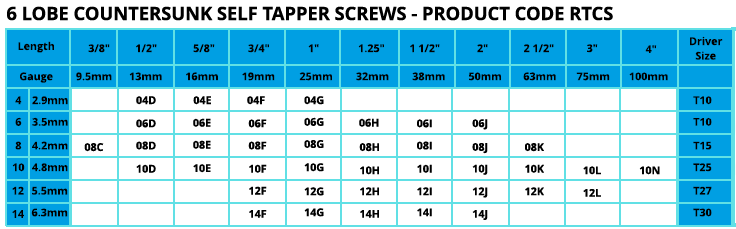

| SIZE | LENGTH | MATERIAL | DRIVER SIZE | REF | SMALL BOX QTY |
| NO.4 (2.9mm) | 1/2″ (13mm) | A2 Stainless Steel | T10 | RTCS04D | 100 |
| NO.4 (2.9mm) | 5/8″ (16mm) | A2 Stainless Steel | T10 | RTCS04E | 100 |
| NO.4 (2.9mm) | 3/4″ (19mm) | A2 Stainless Steel | T10 | RTCS04F | 100 |
| NO.4 (2.9mm) | 1″ (25mm) | A2 Stainless Steel | T10 | RTCS04G | 100 |
| NO.6 (3.5mm) | 1/2″ (13mm) | A2 Stainless Steel | T15 | RTCS06D | 100 |
| NO.6 (3.5mm) | 5/8″ (16mm) | A2 Stainless Steel | T15 | RTCS06E | 100 |
| NO.6 (3.5mm) | 3/4″ (19mm) | A2 Stainless Steel | T15 | RTCS06F | 100 |
| NO.6 (3.5mm) | 1″ (25mm) | A2 Stainless Steel | T15 | RTCS06G | 100 |
| NO.6 (3.5mm) | 1-1/4″ (32mm) | A2 Stainless Steel | T15 | RTCS06H | 100 |
| NO.6 (3.5mm) | 1-1/2″ (38mm) | A2 Stainless Steel | T15 | RTCS06I | 100 |
| NO.6 (3.5mm) | 2″ (50mm) | A2 Stainless Steel | T15 | RTCS06J | 100 |
| NO.8 (4.2mm) | 3/8″ (9.5mm) | A2 Stainless Steel | T20 | RTCS08C | 100 |
| NO.8 (4.2mm) | 1/2″ (13mm) | A2 Stainless Steel | T20 | RTCS08D | 100 |
| NO.8 (4.2mm) | 5/8″ (16mm) | A2 Stainless Steel | T20 | RTCS08E | 100 |
| NO.8 (4.2mm) | 3/4″ (19mm) | A2 Stainless Steel | T20 | RTCS08F | 100 |
| NO.8 (4.2mm) | 1″ (25mm) | A2 Stainless Steel | T20 | RTCS08G | 100 |
| NO.8 (4.2mm) | 1-1/4″ (32mm) | A2 Stainless Steel | T20 | RTCS08H | 100 |
| NO.8 (4.2mm) | 1-1/2″ (38mm) | A2 Stainless Steel | T20 | RTCS08I | 100 |
| NO.8 (4.2mm) | 1-3/4″ (44mm) | A2 Stainless Steel | T20 | RTCS08IA | 100 |
| NO.8 (4.2mm) | 2″ (50mm) | A2 Stainless Steel | T20 | RTCS08J | 100 |
| NO.8 (4.2mm) | 2-1/2″ (63mm) | A2 Stainless Steel | T20 | RTCS08K | 100 |
| NO.10 (4.8mm) | 1/2″ (13mm) | A2 Stainless Steel | T25 | RTCS10D | 100 |
| NO.10 (4.8mm) | 5/8″ (16mm) | A2 Stainless Steel | T25 | RTCS10E | 100 |
| NO.10 (4.8mm) | 3/4″ (19mm) | A2 Stainless Steel | T25 | RTCS10F | 100 |
| NO.10 (4.8mm) | 1″ (25mm) | A2 Stainless Steel | T25 | RTCS10G | 100 |
| NO.10 (4.8mm) | 1-1/4″ (32mm) | A2 Stainless Steel | T25 | RTCS10H | 100 |
| NO.10 (4.8mm) | 1-1/2″ (38mm) | A2 Stainless Steel | T25 | RTCS10I | 100 |
| NO.10 (4.8mm) | 2″ (50mm) | A2 Stainless Steel | T25 | RTCS10J | 100 |
| NO.10 (4.8mm) | 2-1/2″ (63mm) | A2 Stainless Steel | T25 | RTCS10K | 100 |
| NO.10 (4.8mm) | 3″ (75mm) | A2 Stainless Steel | T25 | RTCS10L | 100 |
| NO.10 (4.8mm) | 4″ (100mm) | A2 Stainless Steel | T25 | RTCS10N | 100 |
| NO.12 (5.5mm) | 3/4″ (19mm) | A2 Stainless Steel | T27 | RTCS12F | 100 |
| NO.12 (5.5mm) | 1″ (25mm) | A2 Stainless Steel | T27 | RTCS12G | 100 |
| NO.12 (5.5mm) | 1-1/4″ (32mm) | A2 Stainless Steel | T27 | RTCS12H | 100 |
| NO.12 (5.5mm) | 1-1/2″ (38mm) | A2 Stainless Steel | T27 | RTCS12I | 100 |
| NO.12 (5.5mm) | 2″ (50mm) | A2 Stainless Steel | T27 | RTCS12J | 100 |
| NO.12 (5.5mm) | 2-1/2″ (63mm) | A2 Stainless Steel | T27 | RTCS12K | 100 |
| NO.12 (5.5mm) | 3″ (75mm) | A2 Stainless Steel | T27 | RTCS12L | 100 |
| NO.14 (6.3mm) | 3/4″ (19mm) | A2 Stainless Steel | T30 | RTCS14F | 100 |
| NO.14 (6.3mm) | 1″ (25mm) | A2 Stainless Steel | T30 | RTCS14G | 100 |
| NO.14 (6.3mm) | 1-1/4″ (32mm) | A2 Stainless Steel | T30 | RTCS14H | 100 |
| NO.14 (6.3mm) | 1-1/2″ (38mm) | A2 Stainless Steel | T30 | RTCS14I | 100 |
| NO.14 (6.3mm) | 2″ (50mm) | A2 Stainless Steel | T30 | RTCS14J | 100 |
