Countersunk A2 stainless steel pin hex machine screws PHCM

£0.00

Hexagon socket screws manufactured with an internal pin.

Clear

Hexagon socket screws manufactured with an internal pin.

This drive prevents removal with standard hexagon tools. Suitable for medium torque applications and is one the most difficult to remove without the matching driver.

  • Full range of AB Self Tapping and Metric Machine Screws stocked in A2 Stainless Steel
  • Box quantity: 100

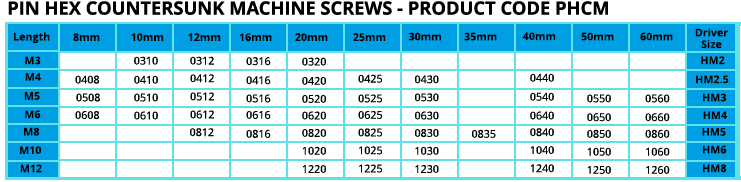

SIZE LENGTH MATERIAL DRIVER SIZE REF SMALL BOX QTY
M3 10mm A2 Stainless Steel HM2 PHCM0310-M 100
M3 12mm A2 Stainless Steel HM2 PHCM0312-M 100
M3 16mm A2 Stainless Steel HM2 PHCM0316-M 100
M3 20mm A2 Stainless Steel HM2 PHCM0320-M 100
M4 8mm A2 Stainless Steel HM2.5 PHCM0408-M 100
M4 10mm A2 Stainless Steel HM2.5 PHCM0410-M 100
M4 12mm A2 Stainless Steel HM2.5 PHCM0412-M 100
M4 16mm A2 Stainless Steel HM2.5 PHCM0416-M 100
M4 20mm A2 Stainless Steel HM2.5 PHCM0420-M 100
M4 25mm A2 Stainless Steel HM2.5 PHCM0425-M 100
M4 30mm A2 Stainless Steel HM2.5 PHCM0430-M 100
M4 40mm A2 Stainless Steel HM2.5 PHCM0440-M 100
M5 8mm A2 Stainless Steel HM3 PHCM0508-M 100
M5 10mm A2 Stainless Steel HM3 PHCM0510-M 100
M5 12mm A2 Stainless Steel HM3 PHCM0512-M 100
M5 16mm A2 Stainless Steel HM3 PHCM0516-M 100
M5 20mm A2 Stainless Steel HM3 PHCM0520-M 100
M5 25mm A2 Stainless Steel HM3 PHCM0525-M 100
M5 30mm A2 Stainless Steel HM3 PHCM0530-M 100
M5 40mm A2 Stainless Steel HM3 PHCM0540-M 100
M5 50mm A2 Stainless Steel HM3 PHCM0550-M 100
M5 60mm A2 Stainless Steel HM3 PHCM0560-M 100
M6 8mm A2 Stainless Steel HM4 PHCM0608-M 100
M6 10mm A2 Stainless Steel HM4 PHCM0610-M 100
M6 12mm A2 Stainless Steel HM4 PHCM0612-M 100
M6 16mm A2 Stainless Steel HM4 PHCM0616-M 100
M6 20mm A2 Stainless Steel HM4 PHCM0620-M 100
M6 25mm A2 Stainless Steel HM4 PHCM0625-M 100
M6 30mm A2 Stainless Steel HM4 PHCM0630-M 100
M6 40mm A2 Stainless Steel HM4 PHCM0640-M 100
M6 50mm A2 Stainless Steel HM4 PHCM0650-M 100
M6 60mm A2 Stainless Steel HM4 PHCM0660-M 100
M8 12mm A2 Stainless Steel HM5 PHCM0812-M 100
M8 16mm A2 Stainless Steel HM5 PHCM0816-M 100
M8 20mm A2 Stainless Steel HM5 PHCM0820-M 100
M8 25mm A2 Stainless Steel HM5 PHCM0825-M 100
M8 30mm A2 Stainless Steel HM5 PHCM0830-M 100
M8 35mm A2 Stainless Steel HM5 PHCM0835-M 100
M8 40mm A2 Stainless Steel HM5 PHCM0840-M 100
M8 50mm A2 Stainless Steel HM5 PHCM0850-M 100
M8 60mm A2 Stainless Steel HM5 PHCM0860-M 100
M10 20mm A2 Stainless Steel HM6 PHCM1020-M 100
M10 25mm A2 Stainless Steel HM6 PHCM1025-M 100
M10 30mm A2 Stainless Steel HM6 PHCM1030-M 100
M10 40mm A2 Stainless Steel HM6 PHCM1040-M 100
M10 50mm A2 Stainless Steel HM6 PHCM1050-M 100
M10 60mm A2 Stainless Steel HM6 PHCM1060-M 100
M12 20mm A2 Stainless Steel HM8 PHCM1220 100
M12 25mm A2 Stainless Steel HM8 PHCM1225 100
M12 30mm A2 Stainless Steel HM8 PHCM1230 100
M12 40mm A2 Stainless Steel HM8 PHCM1240 100
M12 50mm A2 Stainless Steel HM8 PHCM1250 100
M12 60mm A2 Stainless Steel HM8 PHCM1260 100

Additional information

GAUGE

M10, M12, M3, M4, M5, M6, M8

LENGTH

100mm, 10mm, 120mm, 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 6mm, 70mm, 75mm, 80mm, 8mm
