Description
6-Lobe recess manufactured with internal pin.
Popular security drive for high torque applications. Quickly and easily installed and removed using matching tooling.
Full range of AB Self Tapping and Metric Machine Screws stocked in A2
- Full range of AB Self Tapping and Metric Machine Screws stocked in A2 Stainless Steel

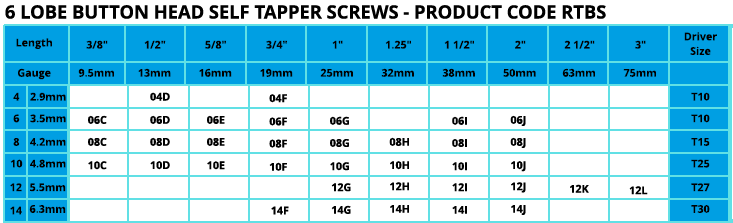

Product Code Product description
| RTBS06C | 6 x 3/8″ (3.5 x 9.5mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS06D | 6 x 1/2″ (3.5 x 13mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS06E | 6 x 5/8″ (3.5 x 16mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS06F | 6 x 3/4″ (3.5 x 19mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS06G | 6 x 1″ (3.5 x 25mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS06I | 6 x 1-1/2″ (3.5 x 38mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS06J | 6 x 2″ (3.5 x 50mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS08C | 8 x 3/8″ (4.2 x 9.5mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS08D | 8 x 1/2″ (4.2 x 13mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS08E | 8 x 5/8″ (4.2 x 16mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS08F | 8 x 3/4″ (4.2 x 19mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS08G | 8 x 1″ (4.2 x 25mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS08H | 8 x 1-1/4″ (4.2 x 32mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS08I | 8 x 1-1/2″ (4.2 x 38mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS08J | 8 x 2″ (4.2 x 50mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS10C | 10 x 3/8″ (4.8 x 9.5mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS10D | 10 x 1/2″ (4.8 x 13mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS10E | 10 x 5/8″ (4.8 x 16mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS10F | 10 x 3/4″ (4.8 x 19mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS10G | 10 x 1″ (4.8 x 25mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS10H | 10 x 1-1/4″ (4.8 x 32mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS10I | 10 x 1-1/2″ (4.8 x 38mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS10J | 10 x 2″ (4.8 x 50mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
| RTBS12F | 12 x 3/4″ (5.5 x 19mm) Button Head A2 Stainless Steel 6-Lobe Pin Self Tapper |
