Description

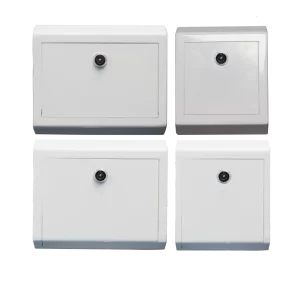

The lighter has been designed for areas that cannot be powered by mains electricity. The unit is available in two sizes to house either one or two 12 volt batteries. The unit is a weatherproof
polycarbonate enclosure and is fitted with an illuminated push button and allows access to the workings of the lighter through a removable faceplate thus leaving the back box permanently
secured to the wall.
Mounting Style
This lighter is mounted onto a wall or similar flat surface. The unit is powered by a 12v battery which
can be charged by a Ciglow solar cell (CIG-SOL), wind turbine or similar power source.
Weatherproof Rating
This lighter is rated IP65 and is suitable for outdoor use in all weather conditions
Element
This lighter uses the CIG-SL internally mounted screw-in element
Operation
This lighter operates a safety control timer. The user presses the push button then releases. The
unit then runs through a cycle which heats up the element, switches it off, and then adds in a cool
down period. The timer cannot be restarted whilst this cycle is running.
Dimensions
Single battery box: 250 mm (h) x 180 mm (w) x 100 mm (d)
Twin battery box: 300 mm (h) x 200 mm (w) x 160 mm (d)
Weight
4 kg (including battery)
FEATURES
- For use when mains connection is not possible.
- Can use a number of power sources
- CE Approved
- Illuminated push button when in use
- IP66 rated
- Dimensions: 300 (h) x 200 (w) x 160mm (d)
- Boxed weight: 5.2 kgs
Product Code CIG-BTY-CT-12
