Description

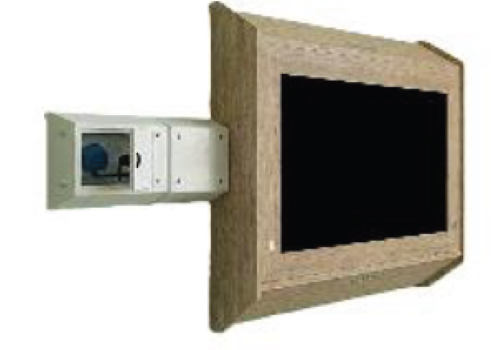

Bespoke extensions from 20mm to 200mm wide to bridge the gap between the lockable double socket enclosure and the side of a cabinet to ensure no gaps are visible.
Product Features
- Sloping edges to all four sides.
- Easily fixes to the wall with 4 x 6 pin lobe security screws (supplied)
- Specialist screw cover caps to easily locate to correct position and alignment.
- Manufactured from Polylactide.
Installation
- Surface around the Enclosure must be clean and clear of any debris.
- The Enclosure must not bridge any gaps in the substrate.
- Any holes in the substrate prior to installation must be filled and allowed to harden and sanded smooth before securing the Enclosure.
- Using the installation document as guidance position the enclosure prior to screwing in place. Mark the 4 fixing holes. Using the supplied 4 x security screws fix directly into the substrate. Rawl plugs may be required. (not supplied)
- A small bead of Anti-pick sealant (AP110) is recommended around all 4 edges to the substrate.
- Using the supplied 4 x screw cover caps align the slot to the guide rail and push firmly into place. Anti-pick can also be used to adhere the caps into place
Cleaning
- Wipe over with a Micro-fibre cloth using mild detergent
